The eNodeB (eNB) | Network Elements and Functions

The eNB is the network entity that is responsible for radio interface transmission and reception. This includes radio channel modulation/demodulation as well as channel coding/decoding and multiplexing/demultiplexing.
System information is broadcast in each cell on the radio interface DL to provide basic information to UEs as a prerequisite to access the network.
The LTE base station hosts all RRC functions such as broadcast of system information and RRC connection control including:
  • Paging of subscribers.
  • Establishment, modification, and release of RRC connection including the allocation of temporary UE identities (Radio Network Temporary Identifier, RNTI).
  • Initial security activation, which means the initial configuration of the Access Stratum (AS) integrity protection for the control plane and AS ciphering for both control plane and user plane traffic.
  • RRC connection mobility that includes all types of intra-LTE handover (intra-frequency and inter-frequency). In the case of handover, the source eNB will take care of the associated security handling and provide the necessary key and algorithm information to the handover target cell by sending specific RRC context information embedded in a transparent container to the handover target eNB.
  • Establishment, modification, and release of DRBs (Dedicated Radio Bearers) carrying user data.
  • Radio configuration control, especially the assignment and modification of ARQ and Hybrid Automatic Repeat Request (HARQ) parameters as well as Discontinuous Reception (DRX) configuration parameters.
  • QoS control to ensure that, for example, user plane packets of different connections are scheduled with the required priority for DL transmission and that mobiles receive the scheduling grants for UL data transmission according to the QoS parameters of the radio bearers.
  • Recovery functions that allow re-establishment of radio connections after physical channel failure or Radio Link Control Acknowledged Mode (RLC AM) retransmission errors.
The most crucial part for measuring the eNB performance is the UL/DL resource management and packet scheduling performed by the eNB. This is probably the most difficult function which requires the eNB to cope with many different constraints like radio link quality, user priority, requested QoS, and UE capabilities. It is the task of the eNB to make use of the available resources in the most efficient way.
Furthermore, the RRC entity of the eNB covers all types of intra-LTE and inter-RAT measurements, in particular:
  • Setup, modification, and release of measurements for intra-LTE intra-frequency, intra-LTE inter-frequency, inter-RAT mobility, transport channel quality, UE internal measurement reports to indicate, for example, current power consumption and GPS positioning reports sent by the handset.
  • For compressed mode measurements it is necessary to configure, activate, and deactivate the required measurement gaps.
  • The evaluation of reported measurement results and start of necessary handover procedures are also eNB functions (while in 3G UMTS all measurement evaluation and handover control functions have been embedded in the RNC). The many different parameters used in RRC measurement control functions like hysteresis values, time to trigger timer values, and event level threshold of RSRP and RSRQ (Received Signal Reference Power and Received Signal Reference Quality) are the focus of radio network optimization activities.
Other functions of the eNB comprise the transfer of dedicated NAS information and non-3GPP dedicated information, the transfer of UE radio access capability information, support for E-UTRAN sharing (multiple Public Land Mobile Network (PLMN) identities), and management of multicast/ broadcast services.
The support of self-configuration and self-optimization is seen as one of the key features of the E-UTRAN. Among these functions we find, for example, intelligent learning functions for automatic updates of neighbor cell lists (handover candidates) as they are used for RRC measurement tasks and handover decisions.
The eNB is a critical part of the user plane connections. Here the data is routed, multiplexed, ciphered/deciphered, segmented, and reassembled. It is correct to say that on the E-UTRAN transport layer level, the eNB acts as an IP router and switch. The eNB is also responsible for optional IP header compression. On the control plane level, the eNB selects the MME to which NAS signaling messages are routed.

Friday, September 23, 2011

LTE Radio Access Network Architecture

The E-UTRAN comes with a simple architecture that is illustrated in Figure 1. The base stations of the network are called eNodeB and each eNB is connected to one or multiple MMEs. These MMEs in turn are connected to a S-GW that may also be co-located (comprising the same physical hardware) with the MME. The interface between the eNB and MME is the called the S1 interface. In case the MME and S-GW are not found in the same physical entity, the S1 control plane interface (S1-MME) will connect the eNB and MME while the S1 user plane interface (here S1-U) will connect the eNB with the S-GW.

Figure 1: E-UTRAN network architecture (according to 3GPP 36.300).
In case one eNB is connected to multiple MMEs, these MMEs form a so-called MME pool and the appropriate network functionality is called S1 flex. The initial signaling procedure used to connect an eNB with a MME is the S1 setup procedure of the S1 Application Part (S1AP).
The X2 interface is used to connect eNBs with each other. The main purpose of this connectivity is intra-E-UTRAN handover. In the real world it will not be possible for all eNBs of the network to be connected via X2 due to limited transport resources on the wired interfaces. It also must be expected that, physically, the X2 links will lead from one eNB to the MME and then back to a second eNB. In other words, the hubs will be located at the physical location of the MME.
It is important to understand that only the base stations and their physical connections (wires or fibers) are defined by 3GPP as the E-UTRAN, while MME and S-GW are seen as elements of the EPC network.

Sunday, September 18, 2011

LTE Standards and Standard Roadmap

To understand LTE it is necessary to look back at its predecessors and follow its path of evolution for packet switched services in mobile networks.
The first stage of the General Packet Radio Service (GPRS), that is often referred to as the 2.5G network, was deployed in live networks starting after the year 2000. It was basically a system that offered a model of how radio resources (in this case, GSM time slots) that had not been used by Circuit Switched (CS) voice calls could be used for data transmission and, hence, profitability of the network could be enhanced. At the beginning there was no pre-emption for PS (Packet Switched) services, which meant that the packet data needed to wait to be transmitted until CS calls had been finished.
In contrast to the GSM CS calls that had a Dedicated Traffic Channel (DTCH) assigned on the radio interface, the PS data had no access to dedicated radio resources and PS signaling, and the payload was transmitted in unidirectional Temporary Block Flows (TBFs) as shown in Figure 1.

Figure 1: Packet data transfer in 2.5G GPRS across Radio and Abis interfaces
These TBFs were short and the size of data blocks was small due to the fact that the blocks must fit the transported data into the frame structure of a 52-multiframe, which is the GSM radio transmission format on the physical layer. Larger Logical Link Control (LLC) frames that contain already segmented IP packets needed to be segmented into smaller Radio Link Control (RLC) blocks.
The following tasks are handled by the RLC protocol in 2.5G:
  • Segmentation and reassembly of LLC packets  segmentation results in RLC blocks.
  • Provision of reliable links on the air interface  control information is added to each RLC block to allow Backward Error Correction (BEC).
  • Performing sub-multiplexing to support more than one MS (Mobile Station) by one physical channel.
The Medium Access Control (MAC) protocol is responsible for:
  • point-to-point transfer of signaling and user data within a cell;
  • channel combining to provide up to eight physical channels to one MS;
  • mapping RLC blocks onto physical channels (time slots).
As several subscribers can be multiplexed on one physical channel, each connection has to be (temporarily) uniquely identified. Each TBF is identified by a Temporary Flow Identifier (TFI). The TBF is unidirectional (uplink (UL) and downlink (DL)) and is maintained only for the duration of the data transfer.
Toward the core network in 2.5G GPRS the Gb interface is used to transport the IP payload as well as GPRS Mobility Management/Session Management (GMM/SM) signaling messages and short messages (Short Message Service, SMS) between SGSN and the PCU (Packet Control Unit) – see Figure 2. The LLC protocol is used for peer-to-peer communication between SGSN and the MS and provides acknowledged and unacknowledged transport services. Due to different transmission conditions on physical layers (E1/T1 on the Gb and Abis interfaces, 52-multiframe on the Air interface), the size of IP packets needs to be adapted. The maximum size of the LLC payload field is 1540 octets (bytes) while IP packets can have up to 65 535 octets (bytes). So the IP frame is segmented on SGSN before transmission via LLC and reassembled on the receiver side.

Figure 2:  Packet data transfer in 2.5G GPRS
All in all, the multiple segmentation/reassembly of IP payload frames generates a fair overhead of transport header information that limits the chargeable data throughput. In addition, the availability of radio resources for PS data transport has not been guaranteed. So this system was only designed for non-real-time services like web-browsing or e-mail.
To overcome these limitations the standards organizations proposed a set of enhancements that led to the parallel development of UMTS and EGPRS (Enhanced GPRS) standards. The most successful EGPRS standard that is found today in operators' networks is the EDGE standard. From the American Code Division Multiple Access (CDMA) technology family another branch of evolution led to the CDMA2000 standards (defined by the 3GGP2 standards organization), but since the authors have not seen any interworking between CDMA2000 and Universal Terrestrial Radio Access Network (UTRAN) or GSM/EDGE Radio Access Network (GERAN) so far, this technology will not be discussed further in this book.
The most significant enhancements of EGPRS compared to GSM/GPRS are shown in Figures 3 and 4. On the one hand a new modulation technique, 8 Phase Shift Keying (8PSK), was introduced to allow transmission of 8 bits per symbol across the air interface and, thus, an increase in the maximum possible bit rate from 20 to 60 kbps. On the other hand, to use the advantages of the new 8PSK modulation technique it was necessary to adapt the data format on the RLC/MAC layer, especially regarding the size of the transport blocks and the time transmission interval of the transport blocks. Different transport block formats require a different CS. Thus, the so-called Modulation and Coding Scheme (MCS) and CS for GPRS and EGPRS as shown in Figure 3 have been defined. These MCSs stand for defined radio transmission capabilities on the UE and BTS (Base Transceiver Station) side. It is important to mention this, because in a similar way capability definition with UE physical layer categories instead of MCS were introduced for HSPA and will be found in LTE again.

Figure 3: GSM/GPRS vs. EGPRS modulation

Figure 4: Modulation/coding scheme and maximum bit rate in GSM/GPRS vs. EGPRS
In comparison to GSM/GPRS, the EGPRS technology also offered a more efficient retransmission of erroneous data blocks, mostly with a lower MCS than the one used previously. The retransmitted data also does not need to be sent in separate data blocks, but can be appended piece by piece to present regular data frames. This highly sophisticated error correction method, which is unique for EGPRS, is called Incremental Redundancy or Automatic Repeat Request (ARQ) II and is another reason why higher data transmission rates can be reached using EGPRS.

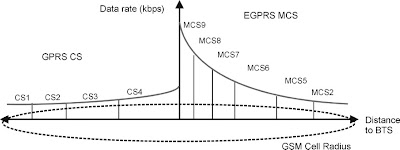

As a matter of fact, as shown in Figure 5, the risk of interference and transmission errors becomes much higher when the distance between a base station and a UE is large. Consequently, the MCS that allows the highest maximum bit rate cannot be used in the overall cell coverage area, but only in a smaller area close to the base station's antenna. Also for this specific behavior, an adequate expression will be found in LTE radio access.

Figure 5: Cell footprint of maximum bit rate as function of MCS in (E)GPRS
Since these early days two key parameters have driven the evolution of packet services further toward LTE: higher data rates and shorter latency. EGPRS (or EDGE) focused mostly on higher bit rates, but did not include any latency requirements or algorithms to guarantee a defined Quality of Service (QoS) in early standardization releases. Meanwhile, in parallel to the development of UMTS standards, important enhancements to EDGE have been defined that allow pre-emption of radio resources for packet services and control of QoS. Due to its easy integration in existing GSM networks, EDGE is widely deployed today in cellular networks and is expected to coexist with LTE on the long haul.
Nevertheless, the first standard that promised complete control of QoS was UMTS Release 99. In contrast to the TBFs of (E)GPRS, the user is assigned dedicated radio resources for PS data that are permanently available through a radio connection. These resources are called bearers.
In Release 99, when a PDP (Packet Data Protocol) context is activated the UE is ordered by the RNC (Radio Network Controller) to enter the Radio Resource Control (RRC) CELL_DCH state. Dedicated resources are assigned by the Serving Radio Network Controller (SRNC): these are the dedicated physical channels established on the radio interface. Those channels are used for transmission of both IP payload and RRC signaling – see Figure 6. RRC signaling includes the exchange of Non-Access Stratum (NAS) messages between the UE and SGSN.

Figure 6: IP payload transmission using Release 99 bearers with UE in CELL_DCH state
The spreading factor of the radio bearer (as the combination of several physical transport resources on the Air and Iub interfaces is called) depends on the expected UL/DL IP throughput. The expected data transfer rate can be found in the RANAP (Radio Access Network Application Part) part of the Radio Access Bearer (RAB) assignment request message that is used to establish the Iu bearer, a GPRS Tunneling Protocol (GTP) tunnel for transmission of a IP payload on the IuPS interface between SRNC and SGSN. While the spreading factor controls the bandwidth of the radio connection, a sophisticated power control algorithm guarantees the necessary quality of the radio transmission. For instance, this power control ensures that the number of retransmitted frames does not exceed a certain critical threshold.
Activation of PDP context results also in the establishment of another GTP tunnel on the Gn interface between SGSN and GGSN. In contrast to IuPS, where tunnel management is a task of RANAP, on the Gn interface – as in (E)GPRS – the GPRS Tunneling Protocol – Control (GTP-C) is responsible for context (or tunnel) activation, modification, and deletion.
However, in Release 99 the maximum possible bit rate is still limited to 384 kbps for a single connection and, more dramatically, the number of users per cell that can be served by this highest possible bit rate is very limited (only four simultaneous 384 kbps connections per cell are possible on the DL due to the shortness of DL spreading codes).
To increase the maximum possible bit rate per cell as well as for the individual user, HSPA was defined in Releases 5 and 6 of 3GPP.
In High-Speed Downlink Packet Access (HSDPA) the High-Speed Downlink Shared Channel (HS-DSCH) which bundles several High-Speed Physical Downlink Shared Channels (HS-PDSCHs) is used by several UEs simultaneously – that is why it is called a shared channel.
A single UE using HSDPA works in the RRC CELL_DCH state. For DL payload transport the HSDSCH is used, that is, mapped onto the HS-PDSCH. The UL IP payload is still transferred using a dedicated physical data channel (and appropriate Iub transport bearer); in addition, the RRC signaling is exchanged between the UE and RNC using the dedicated channels – see Figure 7.

Figure 7: IP data transfer using HSDPA
All these channels have to be set up and (re)configured during the call. In all these cases both parties of the radio connection, cell and UE, have to be informed about the required changes. While communication between NodeB (cell) and CRNC (Controlling Radio NetworkController) uses NBAP (Node B Application Part), the connection between the UE and SRNC (physically the same RNC unit, but different protocol entity) uses the RRC protocol.
The big advantage of using a shared channel is higher efficiency in the usage of available radio resources. There is no limitation due to the availability of codes and the individual data rate assigned to a UE can be adjusted quicker to the real needs. The only limitation is the availability of processing resources (represented by channel card elements) and buffer memory in the base station.
In 3G networks the benefits of an Uplink Shared Channel (UL-SCH) have not yet been introduced due to the need for UL power control, that is, a basic constraint of Wideband CDMA (WCDMA) networks. Hence, the UL channel used for High-Speed Uplink Packet Access (HSUPA) is an Enhanced Dedicated Channel (E-DCH). The UL transmission data volume that can be transmitted by the UE on the UL is controlled by the network using so-called "grants" to prevent buffer overflow in the base station and RNC. The same "grant" mechanism will be found in LTE.
All in all, with HSPA in the UTRAN the data rates on the UL and DL have been significantly increased, but packet latency is still a critical factor. It takes quite a long time until the RRC connection in the first step and the radio bearer in the second step are established. Then, due to limited buffer memory and channel card resources in NodeB, an often quite progressive settings of user inactivity timers leads to transport channel-type switching and RRC state change procedures that can be summarized as intra-cell hard handovers. Hard handovers are characterized by the fact that the active radio connection including the radio bearer is interrupted for a few hundred milliseconds. Similar interruptions of the data transmission stream are observed during serving HSDPA cell change procedures (often triggered by a previous soft handover) due to flushing of buffered data in NodeB and rescheduling of data to be transmitted by the RNC. That such interruptions (occurring in dense city center areas with a periodicity of 10–20 seconds) are a major threat for delay-sensitive services is self-explanatory.
Hence, from the user plane QoS perspective the two major targets of LTE are:
  • a further increase in the available bandwidth and maximum data rate per cell as well as for the individual subscriber;
  • reducing the delays and interruptions in user data transfer to a minimum.
These are the reasons why LTE has an always-on concept in which the radio bearer is set up immediately when a subscriber is attached to the network. And all radio resources provided to subscribers by the E-UTRAN are shared resources, as shown in Figure 8. Here it is illustrated that the IP payload as well as RRC and NAS signaling are transmitted on the radio interfaces using unidirectional shared channels, the UL-SCH and the Downlink Shared Channel (DL-SCH). The payload part of this radio connection is called the radio bearer. The radio bearer is the bidirectional point-to-point connection for the user plane between the UE and eNodeB (eNB). The RAB is the user plane connection between the UE and the Serving Gateway (S-GW) and the S5 bearer is the user plane connection between the S-GW and public data network gateway (PDN-GW).

Figure 8: Packet data transfer in E-UTRAN/EPC
The end-to-end connection between the UE and PDN-GW, that is, the gateway to the IP world outside the operator's network, is called a PDN connection in the E-UTRAN standard documents and a session in the core network standards. Regardless, the main characteristic of this PDN connection is that the IP payload is transparently tunneled through the core and the radio access network.
To control the tunnels and radio resources a set of control plane connections runs in parallel with the payload transport. On the radio interface RRC and NAS signaling messages are transmitted using the same shared channels and the same RLC transport layer that is used to transport the IP payload.
RRC signaling terminates in the eNB (different from 3G UTRAN where RRC was transparently routed by NodeB to the RNC). The NAS signaling information is – as in 3G UTRAN – simply forwarded to the Mobility Management Entity (MME) and/or UE by the eNB.
For registration and authentication the MME exchanges signaling messages with the central main subscriber databases of the network, the Home Subscriber Server (HSS).
To open, close, and modify the GTP/IP tunnel between the eNB and S-GW, the MME exchanges GTP signaling messages with the S-GW and the S-GW has the same kind of signaling connection with the PDN-GW to establish, release, and maintain the GTP/IP tunnel called the S5 bearer.
Between the MME and eNB, together with the E-RAB, a UE context is established to store connection-relevant parameters like the context information for ciphering and integrity protection. This UE context can be stored in multiple eNBs, all of them belonging to the list of registered tracking areas for a single subscriber. Using this tracking area list and UE contexts, the inter-eNB handover delay can be reduced to a minimum.
The two most basic LTE standard documents are 3GPP 23.401 "GPRS Enhancements for E-UTRAN Access" and 3GPP 36.300 "Overall Description Evolved Universal Terrestrial Radio Access (E-UTRA) and E-UTRAN." These two specs explain in a comprehensive way the major improvements in LTE that are pushed by an increasing demand for higher bandwidth and shorter latency of PS user plane services. The basic network functions and signaling procedures are explained as well as the network architecture, interfaces, and protocol stacks.

Tuesday, September 13, 2011

LTE Standards, Protocols, and Functions

LTE (Long-Term Evolution) of UMTS (Universal Mobile Telecommunications Service) is one of the latest steps in an advancing series of mobile telecommunication systems. The standards body behind the paperwork is the 3rd Generation Partnership Project (3GPP).
Along with the term LTE, the acronyms EPS (Evolved Packet System), EPC (Evolved Packet Core), and SAE (System Architecture Evolution) are often heard. Figure 1 shows how these terms are related to each other: EPS is the umbrella that covers both the LTE of the Evolved Universal Terrestrial Radio Access Network (E-UTRAN) and the SAE of the EPC network.

Figure 1: EPC and LTE under the umbrella of EPS
LTE was and is standardized in parallel to other radio access network technologies like EDGE (Enhanced Data Rates for GSM evolution) and HSPA (High-Speed Packet Access). This means that LTE is not a simple replacement of existing technologies. Rather it is expected that different kinds of radio access will coexist in operator networks.
From this background it emerges that understanding LTE also requires understanding alternative and coexisting technologies. Indeed, one of the major challenges of LTE signaling analysis will concern the analysis of handover procedures. Especially, the options for possible inter-RAT (Radio Access Technology) handovers have multiplied compared to what was possible in UMTS Release 99. However, also intra-system handover and dynamic allocation of radio resources to particular subscribers will play an important role.
The main drivers for LTE development are:
  • reduced delay for connection establishment;
  • reduced transmission latency for user plane data;
  • increased bandwidth and bit rate per cell, also at the cell edge;
  • reduced costs per bit for radio transmission;
  • greater flexibility of spectrum usage;
  • simplified network architecture;
  • seamless mobility, including between different radio access technologies;
  • reasonable power consumption for the mobile terminal.
It must be said that LTE as a radio access technology is flanked by a couple of significant improvements in the core network known as the EPS. Simplifying things a little, it is not wrong to state that EPS is an all-IP (Internet Protocol) transport network for mobile operators. IP will also become the physical transport layer on the wired interfaces of the E-UTRAN. This all-IP architecture is also one of the facts behind the bullet point on simplified network architecture. However, to assume that to be familiar with the TCP/IP world is enough to understand and measure LTE would be a fatal error. While the network architecture and even the basic signaling procedures (except the handovers) become simpler, the understanding and tracking of radio parameters require more knowledge and deeper investigation than they did before. Conditions on the radio interface will change rapidly and with a time granularity of 1 ms the radio resources assigned to a particular connection can be adjusted accordingly.
For instance, the radio quality that is impacted by the distance between the User Equipment (UE) and base station can determine the modulation scheme and, hence, the maximum bandwidth of a particular connection. Simultaneously, the cell load and neighbor cell interference – mostly depending on the number of active subscribers in that cell – will trigger fast handover procedures due to changing the best serving cell in city center areas, while in rural areas macro cells will ensure the best possibley coverage.
The typical footprint of a LTE cell is expected by 3GPP experts to be in the range from approximately 700 m up to 100 km. Surely, due to the wave propagation laws such macro cells cannot cover all services over their entire footprint. Rather, the service coverage within a single cell will vary, for example, from the inner to the outer areas and the maximum possible bit rates will decline. Thus, service optimization will be another challenge, too.
